Grade 10 Special Master Links 1 leg slings

G10QASH16



With incorporated shortening hooks for 1 leg slings

  • Meets the performance requirements of EN 1677-4.
  • Can be certified to ASTM -A-952
  • Suitable for use with grade 10 chains.
  • Painted finish.
  • Designed for use with 1 leg slings
  • Specially designed for direct clevis connection of hooks to chain.
  • No reduction in W.L.L of sling when using the shortening hook.
  • Proof loaded to 2.5 times the W.L.L.
  • Minimum breaking load 4 times the W.L.L.
  • Marked with size, manufacturers traceability code and part number.
  • Alloy Steel, heat treated, quenched and tempered.
  • Welded.

SAFETY INFORMATION

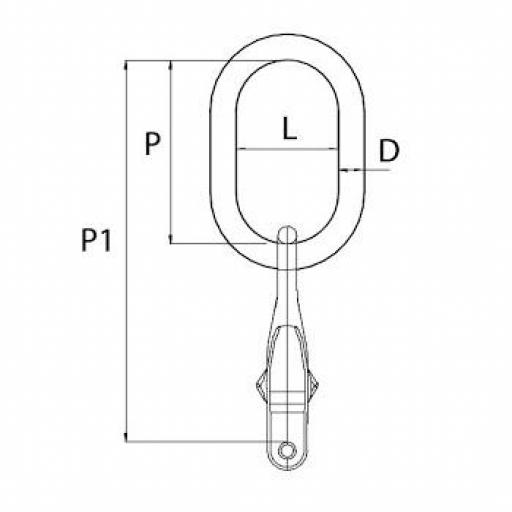

roduct CodeModel No.Chain Dia 1 legDPP1LW.L.L.Weight
mmmmmmmmmmtkgs / ea
S1801D13GI1613110198601.40.61
S1802D16GI17/816110227602.51.14
S1803D18GI110191352837542.12
S1804D22GI11323160345906.74.17
S1805D26GI11627180412100106.98
