Grade 10 Eye Type Foundry Hook G10EFH

G10EFH8

  • Meets the performance requirements of EN1677 1.
  • Can be certified in accordance with ASTM A 952.
  • Suitable for use with grade 10 chain and fittings.
  • Painted finish.
  • Alloy steel, quenched and tempered.
  • Proof load tested to 2.5 times the W.L.L.
  • Minimum breaking load is 4 times the W.L.L.
  • Marked with manufacturers identification, traceability mark, size and material grade.

SAFETY INFORMATION

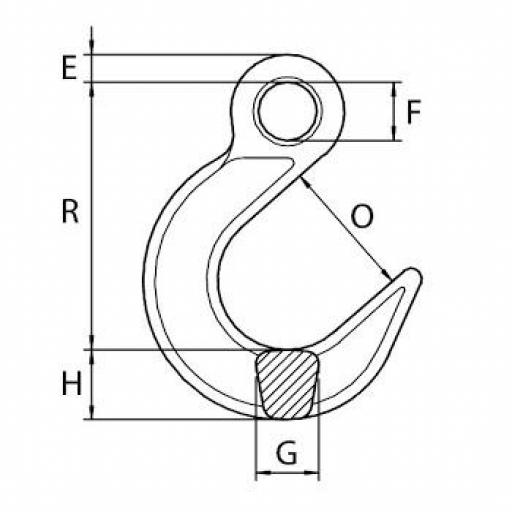

Product CodeModel No.Chain DiaEFGHOR
mmmmmmmmmmmmmm
G10EFH8FHE7-87-813.518263164122.5
G10EFH10FHE10101622323678149
G10EFH13FHE13131927394389176
G10EFH16FHE161624324550100205

Technical Data

Chain DiaWorking Load LimitManufacturing Proof ForceBreaking ForceWeight
mmtkNkN minkgs / ea
7-82.562.81001.13
10498.21572
136.71662653.3
16102514025.3

Qty
