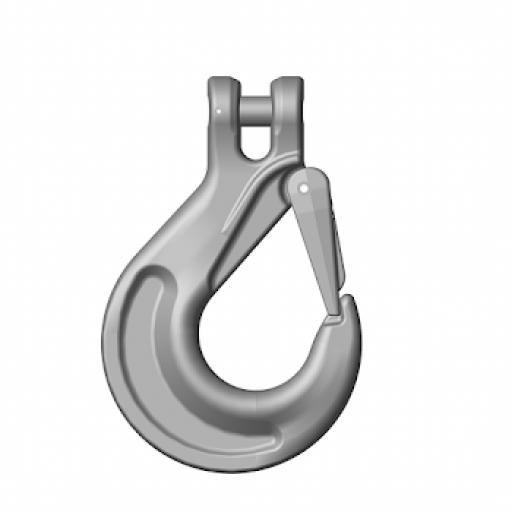

Grade 10 Clevis Sling Hook c/w Safety Latch G10CSH

G10CSH-5

Chain Dia. mm

Alloy steel, quenched and tempered.
Grey painted finish.
Meets the performance requirements of EN1677 2.
Can be certified in accordance with ASTM A 952.
Minimum breaking load is 4 times the W.L.L.
Suitable for use with grade 10 chain and fittings.
Clevis fitting enables direct connection to chain.
Marked with manufacturers identification, traceability mark, size and material grade.
Spare clevis load and retaining pins available.
Spare latch kit available.

SAFETY INFORMATION

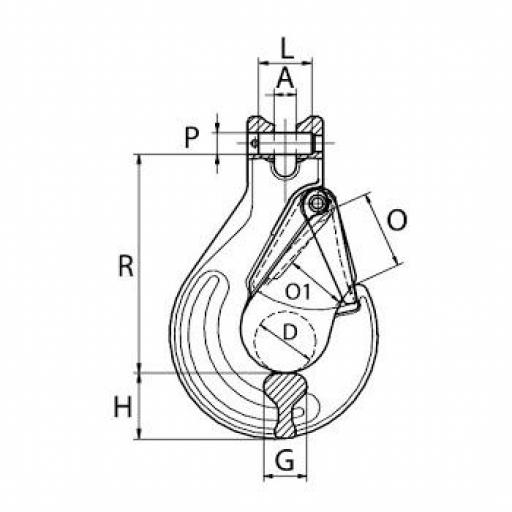

Product Code	Model No.	Chain Dia	A	D	G	H	O	O1	R	P x L
		mm	mm	mm	mm	mm	mm	mm	mm	mm
G10CSH6	SHC6	6	7	18	16.5	20	27	19	69	7.4 x 16.5
G10CSH8	SHC7-8	7-8	9	25	19	28	33.5	26	94.5	9.5 x 23
G10CSH10	SHC10	10	11.5	30	25	33	40	31	109	12.5 x 29.5
G10CSH13	SHC13	13	14.5	38	30	40	50	39	135	16 x 37
G10CSH16	SHC16	16	17.5	44	37	47	58	45	155	20 x 52
G10CSH20	SHC19-20	19-20	23	52	51	52	61	53	183	24 x 73

Technical Data

Chain Dia	Working Load Limit	Manufacturing Proof Force	Breaking Force	Weight
mm	t	kN	kN min	kgs / ea
6	1.4	35.3	56.5	0.27
7-8	2.5	62.8	100	0.61
10	4	98.2	157	1.12
13	6.7	166	265	2.05
16	10	251	402	3.40
19-20	16	393	628	6.26
