Grade 10 Oversized Quad Master Link Assemblies DE Series

GT10QAL7

W.L.L Tonnes

Meets the performance requirements of BS-EN 1677-4.
Suitable for use with grade 10 chains, and with large sub link for use with fibre / wire rope slings.
Painted finish.
Designed for use with 3 & 4 leg slings
Proof loaded to 2.5 times the W.L.L.
Minimum breaking load 4 times the W.L.L.
Marked with size, manufacturers traceability code and part number.
Alloy Steel, heat treated, quenched and tempered.
Link with flat available on request (DEF series)
Welded.

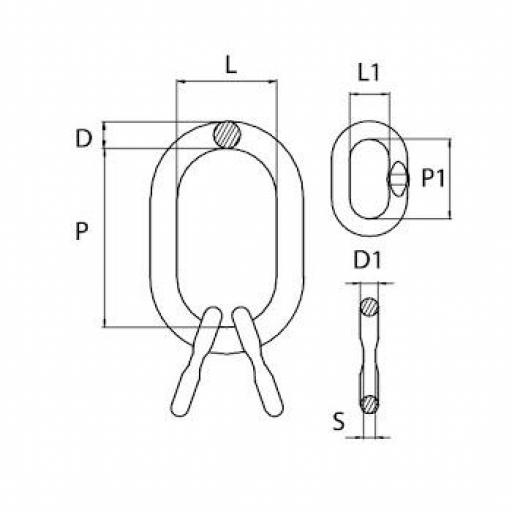

Code	Part No.	chain dia. 3-4 legs	D	P	L	D1	P1	L1	S DLF series	W.L.L.	weight approx
		(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(tonnes)	(kgs)
G10QAL7	D18E14	7	19	135	75	15	120	70	8	5.05	1.94
G10QAL8	D22E16	8	23	160	90	17	140	80	8	6.95	3.12
G10QAL10	D26E20	10	27	180	100	20	160	95	11.5	10.4	4.92
G10QAL13	D32E26	13	33	200	110	27	190	110	14	18	9.50
